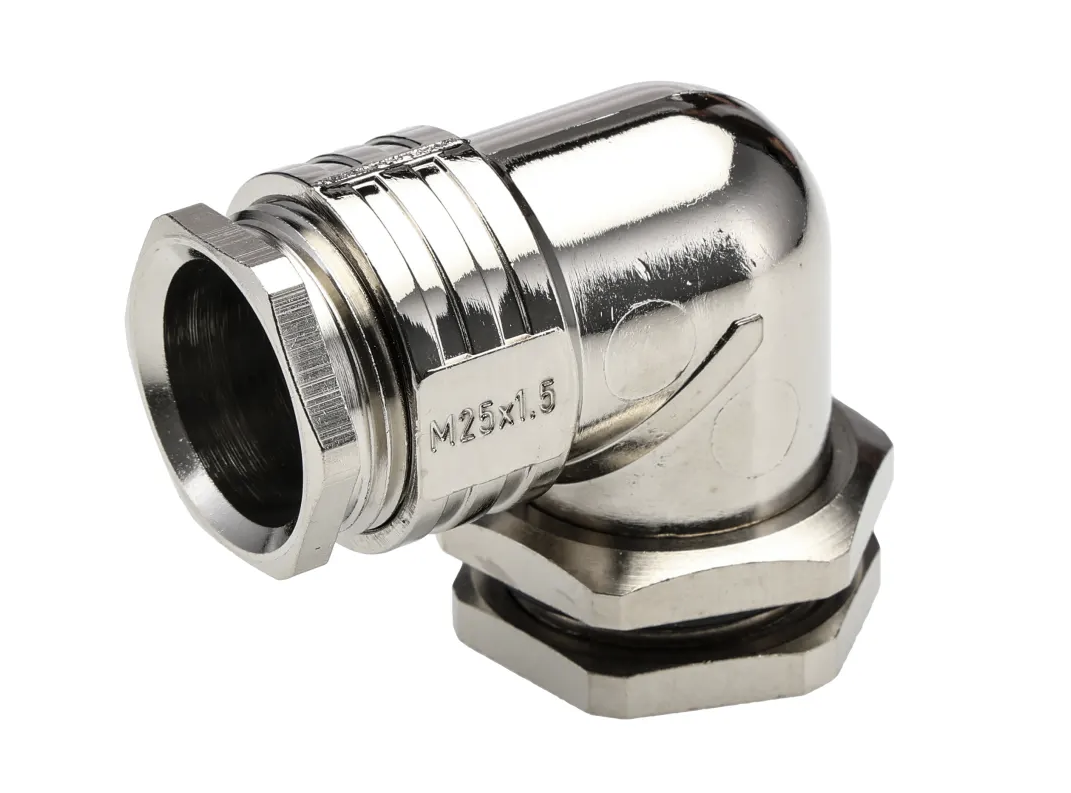

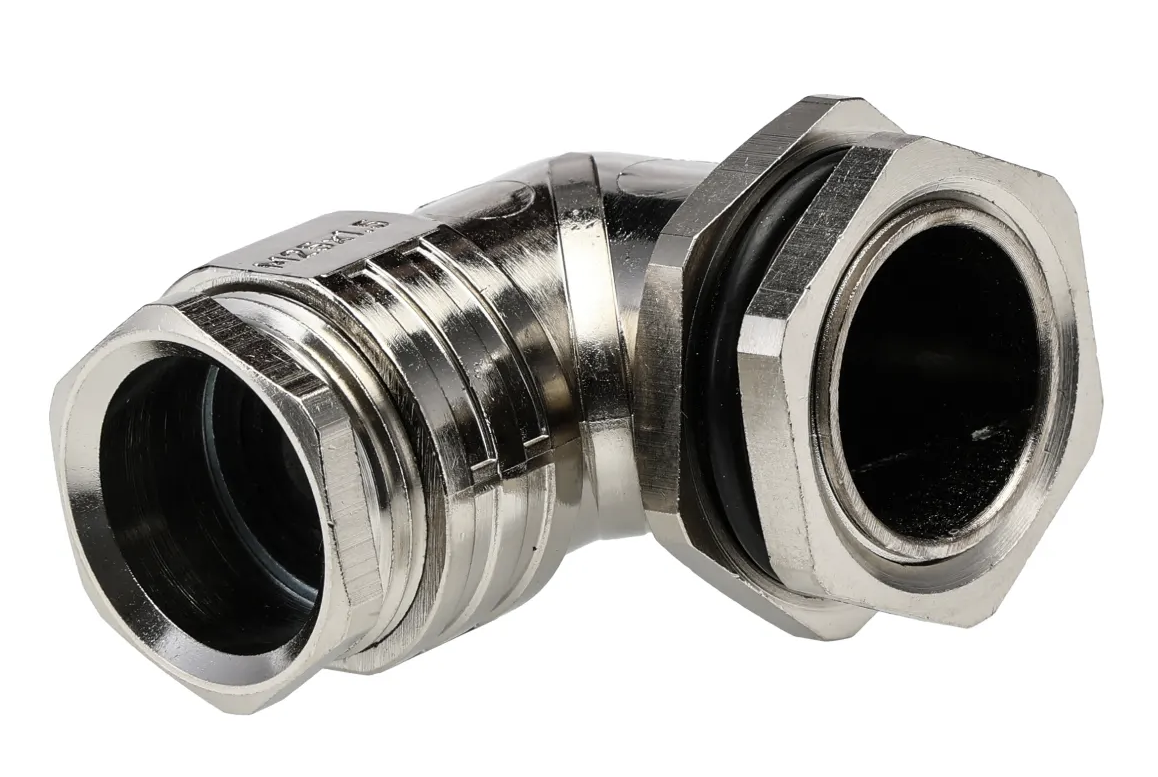

The SKINDICHT RWV-M is a zinc die-cast cable gland with 90° elbow. The locknut enables the angle gland to be installed in any position

Component parts:
Angular housing Zinc die-casting, nickel-plated
Pressure screw Brass, nickel-plated
Locknut Brass, nickel-plated
Pressure washers Steel, zinc-plated
Incised sealing ring CR O–ring NBR
Technical features:
Connecting thread M12x1,5 up to M40x1,5 acc. to EN 60423
Protection class IP68 - 1 bar, test acc. to EN 60529

Temperature range -20 °C up to +100 °C
